Glasgow Engineering has machined a wide range of castings for Bradken Foundry at Youngtown over the years  many of which were supplied to the mining industry on draglines, the following images give a good indication of the capacity and capabilities of our machine shop

Img 2019
Flight Bars machined by Glasgow Engineering

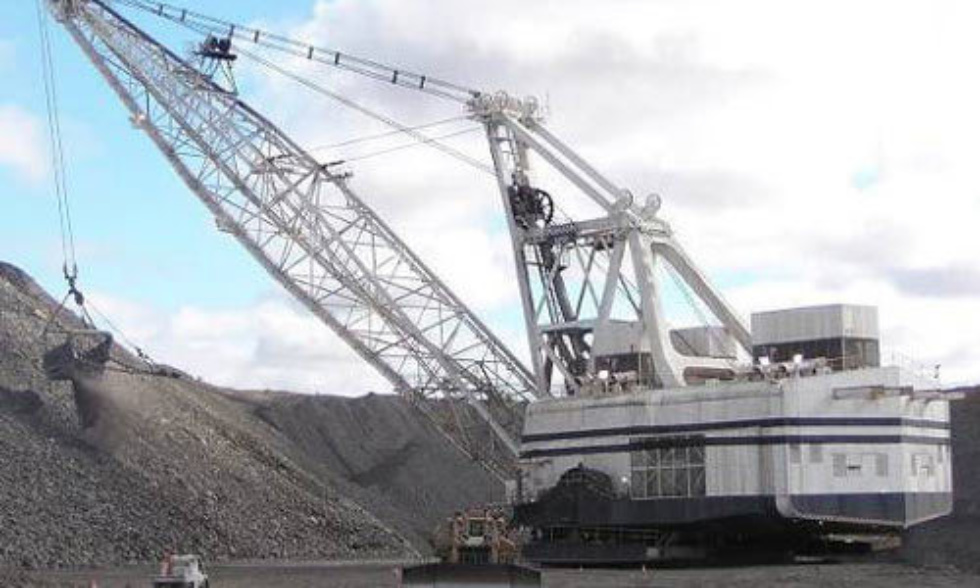

D1
Dragline
Img 4725
Link being machined to fit hardened eccentric bushes
Img 4784
Dragline chain being machined to fit hardened eccentric bushes
Img 5282
Shackels being machined to fit hardened eccentric bushed
Img 4782
Hardened eccentric bush shrunk with liquid nitrogen and fitted this is then welded in as well

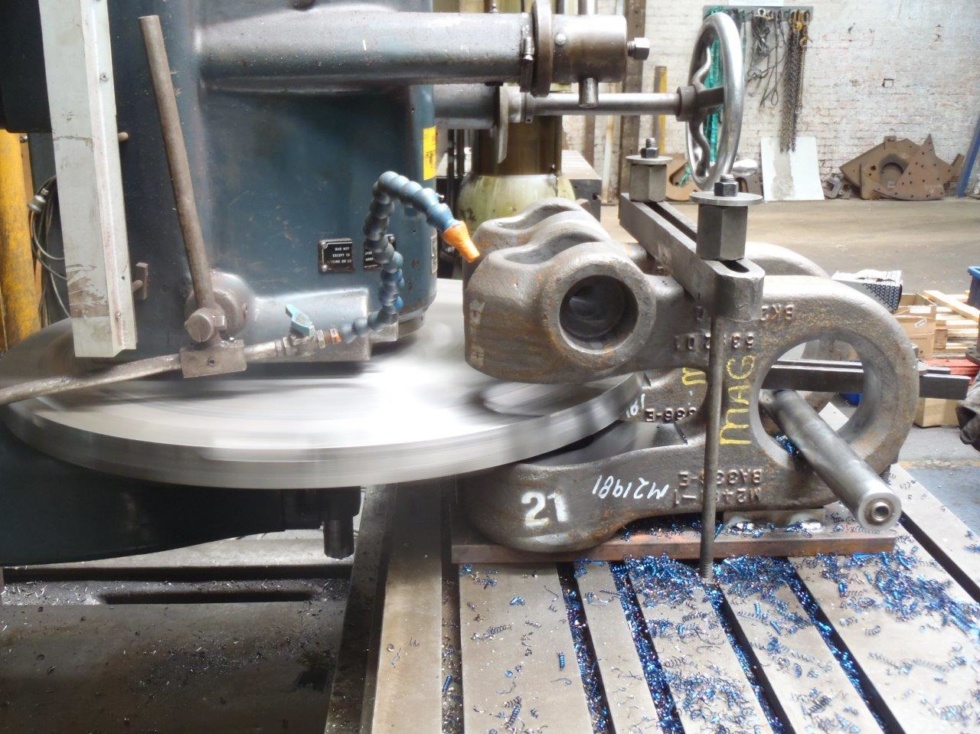

P1221360
Widening the throat on shackel castings on the Herbert milling machine with our custom built cutter

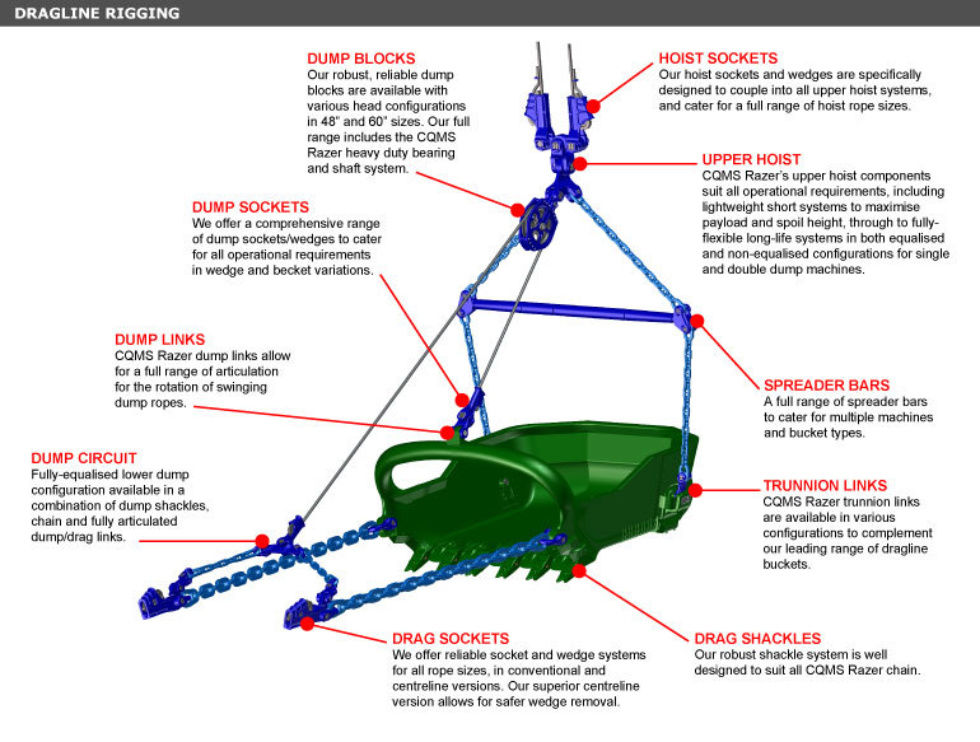

Me Rigging Layout
Componant breakdown of dragline bucket and the parts we were machining

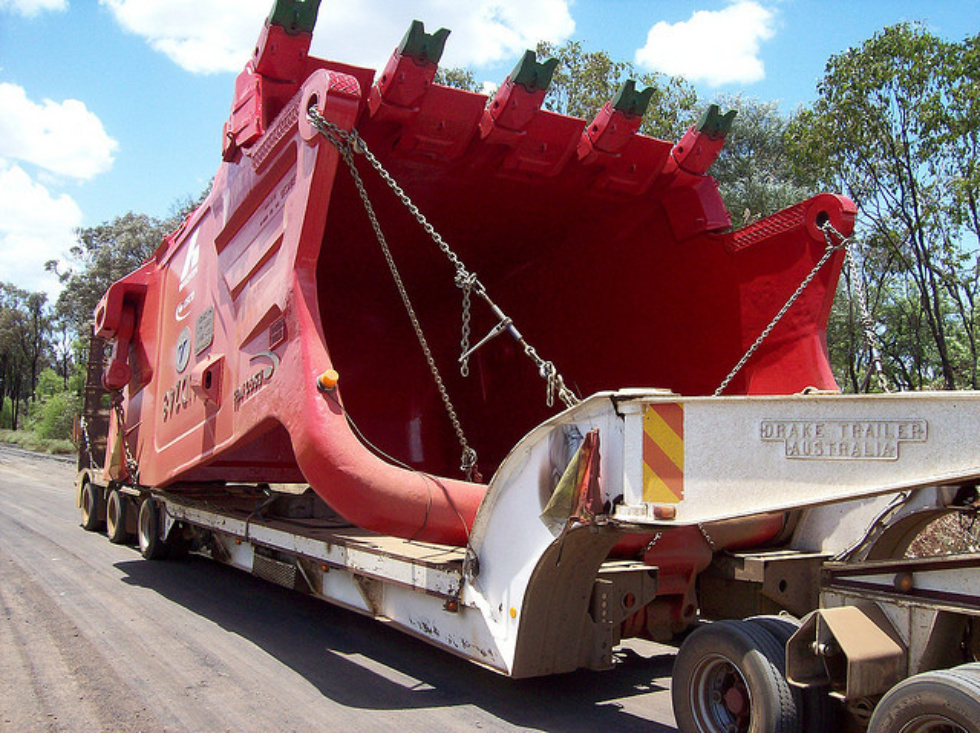

3119806672 5049088Feb Z
Dragline bucket
