During May 2011 Glasgow Engineering were required to assist Graham Mulligan of Clockwise to make alterations to the town clock. Over the years the automatic winder had caused some damage to the pawls and had broken teeth off of the ratchet gear on the chiming barrel. Unfortunately when the clock movement was initially installed there was no facilitation to remove the barrel for maintenance work to be undertaken. This required Glasgow Engineering personnel to manufacture vertical support legs and cut both sections of the clock movement horizontal support beams out. With the winding barrel removed, Glasgow Engineering manufactured a new ratchet gear and two new pawls.

 Launceston’s Town Clock is a tower clock manufactured by Gillet and Johnston in 1909. It has a 2 second pendulum with a double three legged gravity escapement, the same as Big Ben. William Gillett was the founder of the firm. He first began as a clock maker in Hadlow, Kent under the patronage of Lord Sackville-West. He then moved to Clerkenwell, London and from there to Croydon where he established his business in 1844.

From 1844 when William Gillett moved his business to Croydon, through the early part of the 20th Century when Cyril Johnston joined the firm, to the present day Gillett & Johnston has been manufacturing, installing and servicing clocks for clients around the world.



Img 0192
Discussing the plan of attack to remove the winding barrel on the Gillet and Johnston Tower Clock is David Derrick of Glasgow Engineering and Graham Mulligan of Clockwise
Img 0196
The main support frame restricted the removal of the winding barrel
1016926 10151698746810067 462880663 N
lowering winding barrel from the frame
1069161 10151698747160067 782353843 N

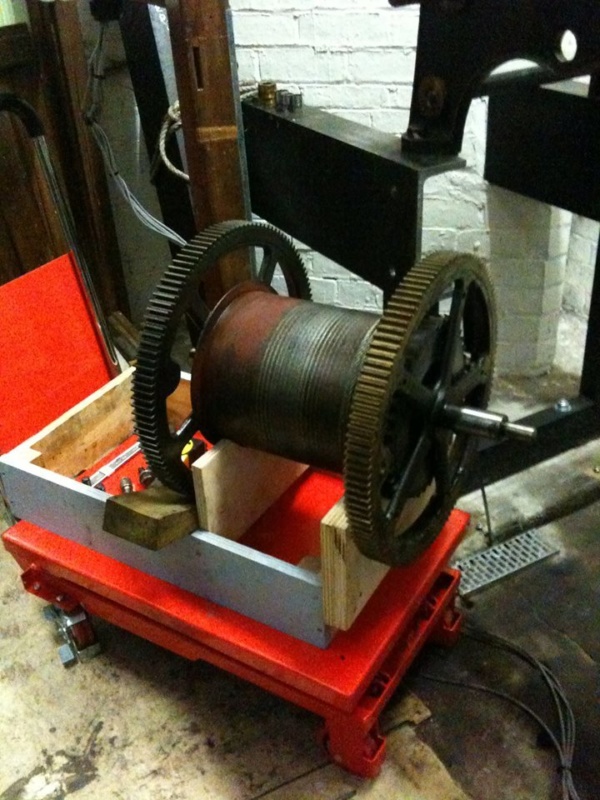

Once the winding barrel was out repairs could take place
998831 10151698746930067 1105811326 N

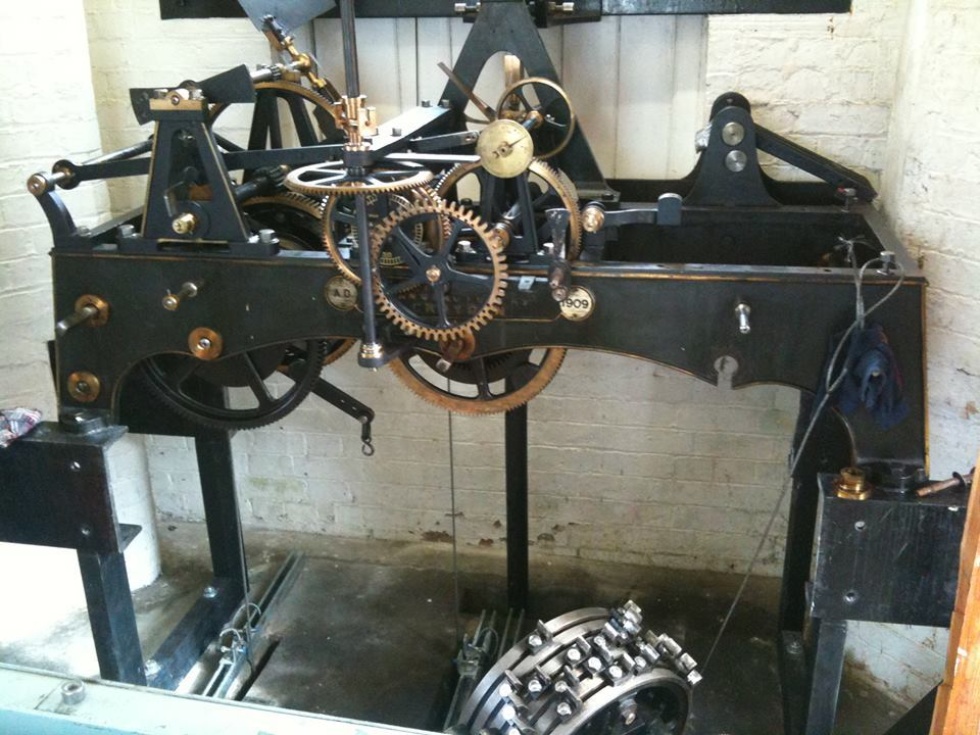

Gillet and Johnston tower clock with clock support beam and winding barrel removed
20052011

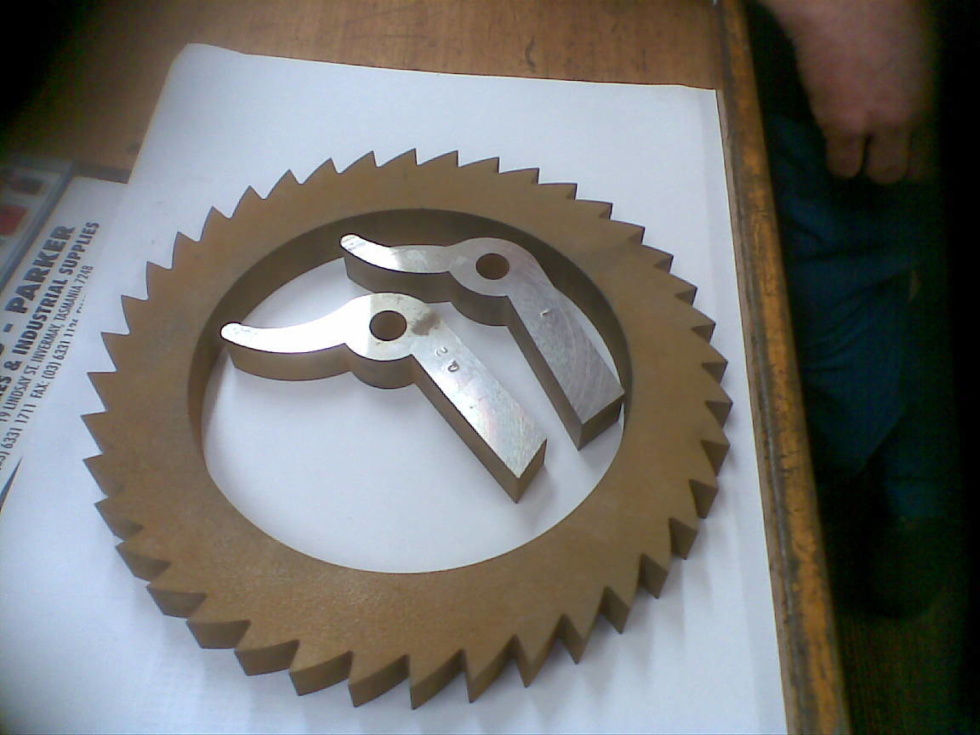

New ratchet and pawls manufactured by Glasgow Engineering
Img 0225
New Pawls fitted
249188 10151577258105067 589800322 N

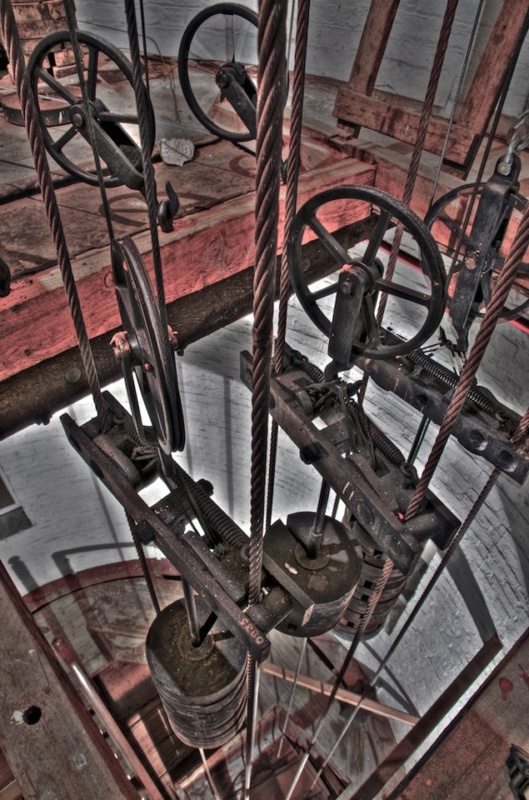

Inside the Gillet and Johnston tower clock
Img 0232
Inside the Gillet and Johnston tower clock
P1050223
Hand drive shaft and bevel gears
Img 0234
Launceston Town Clock
